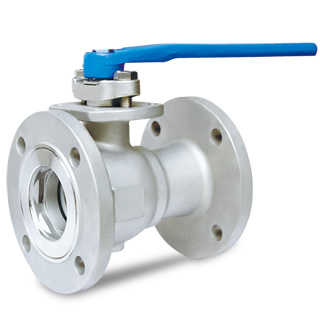

Flange Ball Valves
KH024RM Series is the quarter turn design ball valve broadly used in Oil & Gas, Mining, Petrochemical, Chemical Industries, Power Generation...etc. applications.
• ISO 5211 Direct Mounted Flange Ball Valve with an unobstructed Flow path
• Wave ( Inconel 750 ) Spring design release torque with live-loaded function
• Stainless steel blow out proof stem
• Permits in-line access for seat replacement
• Solid stellited seats with large sealing faces
• Backup seals Graphite to 1,000°F (538°C)
• Wall thickness complies with ASME B16.34
• Stainless steel Flange Ball Valve, hard chrome plated
• Ball and seat are mate lapped for zero leakage shutoff
• Loaded upstream seat for constant seat loads
• press in downstream seat
- Body Material: Standard in Carbon Steel and Stainless Steel (Special material is available according to requirements.)
- Nominal size: 1/2" to 6" (DN15 to DN150)
- Pressure Rating: ANSI 150/300/600LB
- Temperature Range: -29 Deg C to 250 Deg C
- Face to Face Dimension: ANSI B16.10
- Flanged Dimension: ANSI B16.5
- Pressure Test Rating: ANSI B16.34
- Body Pressure Test Rating: ANSI B16.34
- Seat Leakage: ANSI B16.34
- Fire Safety Design: Conform to API 607
