Home > Produce >Trunnion Mounted Ball Valves

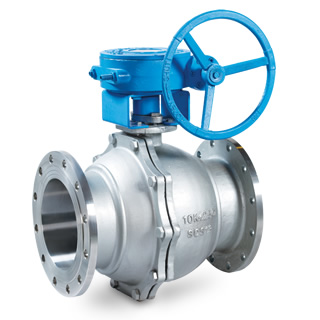

Trunnion Mounted Ball Valves
Trunnion ball design makes the valve to keep stable torque and smooth on/off operation even under high pressure condition.
• Excellent Shutoff
• Unobstructed Flow path
• Interchangeability of Parts
• Simple to Maintain
• Easy to Actuate
• Blow out proof stem
• “Sealmaster” Stem arrangement
• Double stem sealing to comply with TA-Luft requirement
• High Surface Finish
• Widest choice of soft seats in the industry - for use from -200 deg C to 280 deg C, ie., Cryogenic to High Temperature service.
• Heavy duty body & end cap construction with raceable heat unmber
• Tightness to EN 12266-1
• Nominal size: 1" to 24" (DN25 to DN 600)
• Pressure rating: ANSI 150/300/600/900/1200/2500LB
• End connections: RF, RTJ, BW
• Seat: Virgin PTFE, Glass-PTFE, Carbon-PTFE, PEEK, PCTFE, etc

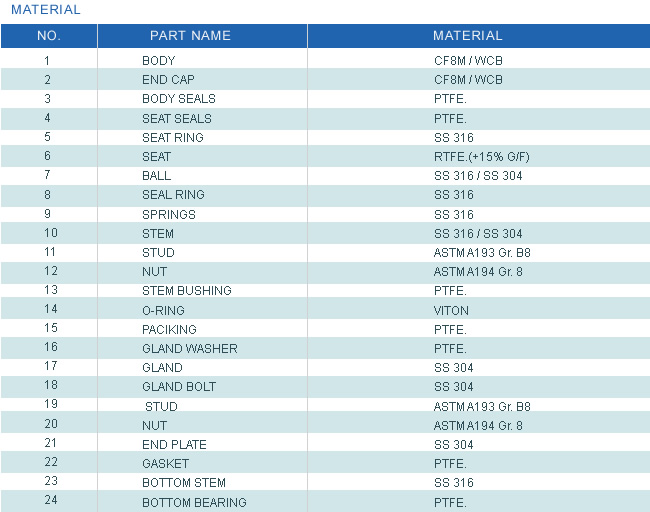

- Body: Standard in Carbon Steel, Stainless Steel, Special Alloy Steel. (Special material is available according to requirements.)

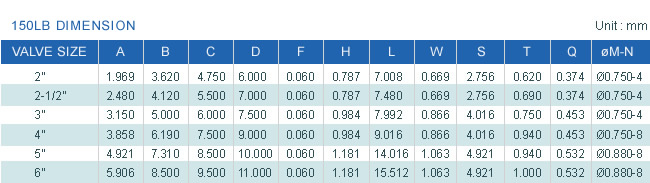

- Face to Face Dimension: ANSI B16.10
- Flanged Dimension: ANSI B16.5
- Pressure Testing: API 6D or API598
- Seat Leakage: ANSI B16.104
- Fire Safe Test: API 607
