Multi-port Ball Valves
Oil & Gas, Mining, Petrochemical, Chemical Industries, Power Generation...etc. applications.

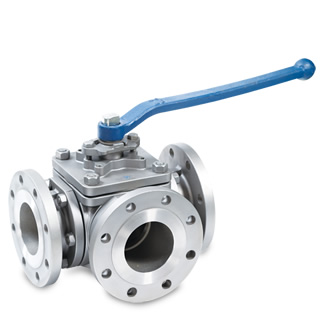

• 3-Way Flanged Ball Valve with a great Shutoff
• There are a Unobstructed Flow path
in 3-Way Flanged Ball Valve
• Unexposed Seats and Ball
• Interchangeability of Parts
• 3-Way Flanged Ball Valves are simple to
• 3-Way Flanged Ball Valve is easy to turn on
• Blow out proof stem
• “Sealmaster” Stem arrangement
• Double stem sealing to comply with
TA-Luft requirement
• High Surface Finish
• Ball with T- or L-shape bore, / Double L port
• Heavy duty body & end cap construction
with traceable heat number
• Nominal size: 1/2" to 12" (DN15 to DN300)
• Flange Dimensions: ANSI 150/300LB
• Seat: Virgin PTFE, Glass-PTFE, Carbon-PTFE,
PEEK, etc.
- Body Material: Standard in ASTM A182 F316,ASTM A105 (Special material is available according to requirements.)
- Material Meet. to NACE MR 0175
- Face to Face Dimension: ANSI B16.10
- Flanged Dimension: ANSI B16.5
- Pressure Testing: API 598 or API 6D
- Body Pressure Temp. Rating: ANSI B16.34
- Seat Leakage: ANSI B16.104
