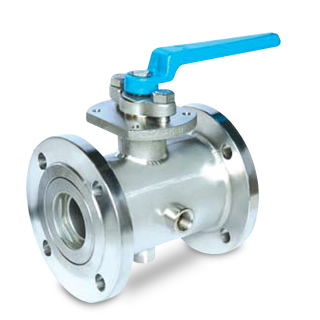

Jacket Flange Ball Valves
Oil & Gas, Mining, Petrochemical, Chemical Industries, Power Generation...etc. applications.
• Excellent Shutoff
• Unobstructed Flow path
• Unexposed Seats and Ball
• Interchangeability of Parts
• Simple to Maintain
• Easy to Actuate
• Blow out proof stem
• “Sealmaster” Stem arrangement
• Double stem sealing to comply
with TA-Luft requirement
• High Surface Finish
• Widest choice of soft seats in the industry
• Cryogenic to High Temperature service.
• Heavy duty body & end cap construction with
traceable heat unmber
• Nominal size: 1/2" to 12" (DN15 to DN300)

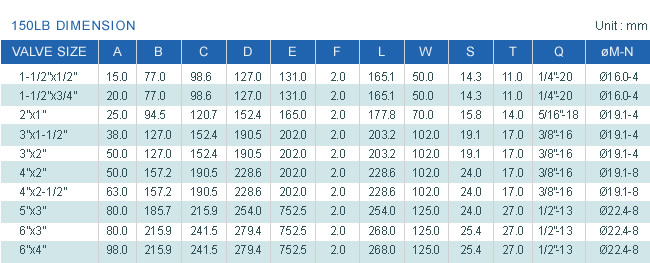

• Flange Dimensions: ANSI 150/300/600LB
• Seat: Virgin PTFE, Glass-PTFE, Carbon-PTFE,
• Temperature Range: -20 Deg C to 180 Deg C
- Body Material: Standard in Carbon Steel and Stainless Steel (Special material is available
according to requirements.)
- Face to Face Dimension: ANSI B16.10
- Flanged Dimension: ANSI B16.5
- Pressure Testing: API 598 or API 6D
- Body Pressure Temp Rating: ASNI B16.34
- Seat Leakage: ANSI B16.104
- Fire Safety Design: Conform to API 607
