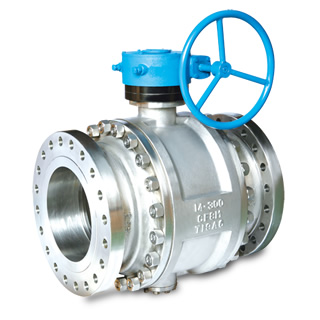

Trunnion Mounted Ball Valves
Trunnion ball design makes the valve to keep stable torque and smooth on/off operation even under high pressure condition and it is used to Oxygen Service and Vacuum Service.
• 3PC Trunnion Mounted Flanged Ball
Valve have a superior Shutoff
• Unobstructed Flow path
• Wave ( Inconel 750 ) Spring design
release torque with live-loaded function
• Stainless steel blow out proof stem
• Permits in-line access for seat replacement
• Solid stellited seats with large sealing faces
• Wall thickness complies with ASME B16.34
• Ball and seat are mate lapped for zero leakage shutoff
• Loaded upstream seat for constant seat loads
• Tight shutoff to ASME/FCI 70-2 CLASS VI,
• External thrust bearing significantly reduces
valve operation torque
• Nominal size: 6" to 24" (DN150 to DN 600)
• Pressure rating: ANSI 150/300/600/900/1200/
• End connections: RF, RTJ, BW

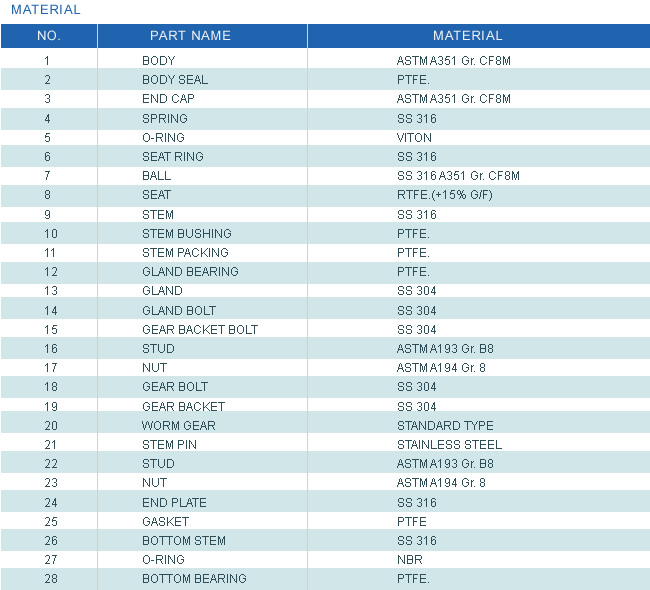

- Body: Standard in Carbon Steel, Stainless Steel, Special Alloy Steel.
(Special material is available according to requirements.)

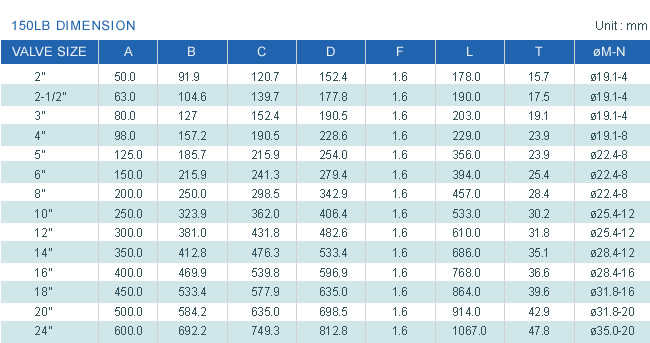

- Face to Face Dimension: ANSI B16.10
- Flanged Dimension: ANSI B16.5
- Pressure Testing: API 6D or API598
- Seat Leakage: ANSI B16.104
- Fire Safe Test: API 6FA
- Casting: MSS-SP-55
