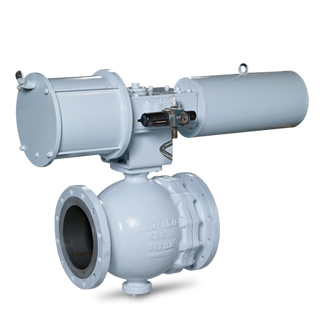

Trunnion Mounted Ball Valves
Trunnion ball design makes the valve to keep stable torque and smooth on/off operation.
• Trunnion Mounted Ball Valve with
an excellent Shutoff
• Unobstructed Flow path
• Wave ( Inconel 750 ) Spring design
release torque with live-loaded function
• Stainless steel blow out proof stem
• Permits in-line access for seat replacement
• Solid stellited seats with large sealing faces
• Wall thickness complies with ASME B16.34
• Trunnion Mounted Ball Valve with Stainless
steel ball, hard chrome plated
• Ball and seat are mate lapped for zero
leakage shutoff
• Loaded upstream seat for constant seat loads
• press in downstream seat
• Tight shutoff to ASME/FCI 70-2 CLASS VI,
• External thrust bearing significantly reduces
valve operation torque

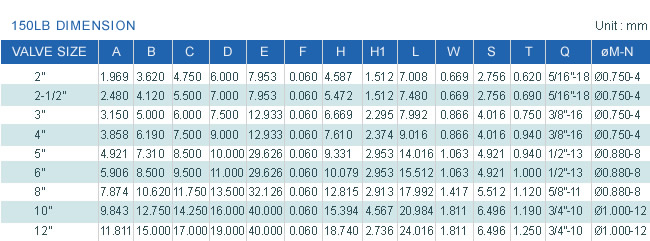

• Nominal size: 1" to 12" (DN25 to DN 300)
• Pressure rating: ANSI 150/300/600LB
• End connections: RF, RTJ, BW

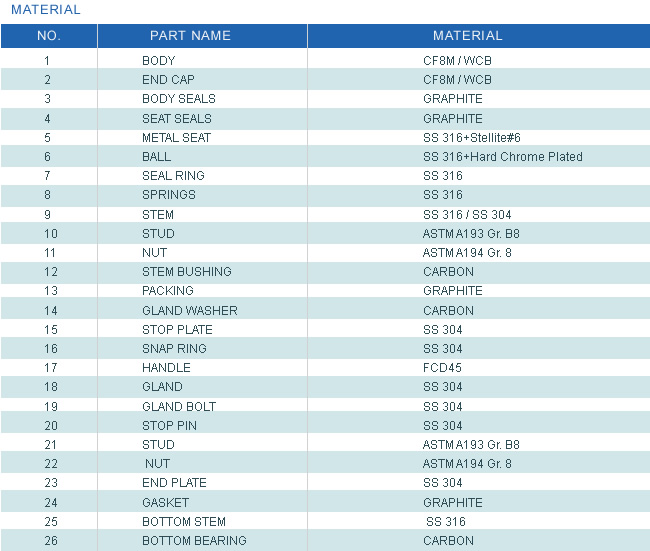

- Body: Standard in Carbon Steel, Stainless Steel, Special Alloy Steel.
(Special material is available according to requirements.)
- Face to Face Dimension: ANSI B16.10
- Flanged Dimension: ANSI B16.5
- Pressure Testing: API 6DAPI598
- Seat Leakage: ANSI B16.34 / API 598 CLASS VI
- Fire Safe Test: API 607 / API 6FA
- Casting: MSS-SP-55
