‧Home > Produce >High Pressure Ball Valves

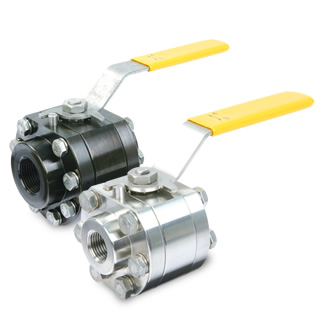

High Pressure Ball Valves

KH01HP
SIZE：1/4"~2"
Oil & Gas, Mining, Petrochemical, Chemical Industries, Power Generation...etc. applications.


• High Pressure Ball Valve with a superior Shutoff
• High Pressure Ball Valve with an unobstructed Flow path
• Unexposed Seats and Ball
• Interchangeability of Parts
• Simple to Maintain
• High Pressure Ball Valve is easy to turn on
• Blow out proof stem
• All seats are preloaded
• Self-adjusting stem seals automatically
• High pressure Ball Valve with a high Surface Finish
• Adjust for stem seal wear
• Tightness to EN 12266-1

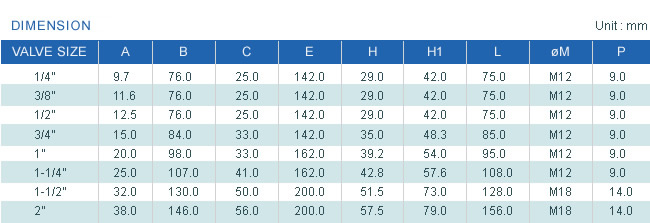

• Nominal size: 1/4" to 2"
• Working Pressure(CWP): 3000/6000PSI
• Seat: Delrin, PEEK, PCTFE

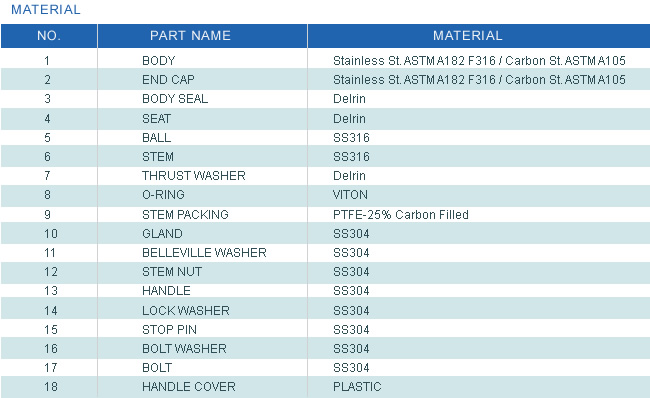

- Body Material: Standard in ASTM A182 F316,ASTM A105 (Special material is available according to requirements.)
- Material Meet. to NACE MR 0175
- Face to Face Dimension: ANSI B16.10
- Flanged Dimension: ANSI B16.5
- Pressure Test Rating: ANSI B16.34
- Body Pressure Testing: API 6D or API 598
- Seat Leakage: ANSI B16.104
- Fire Safety Design: Conform to API 607
