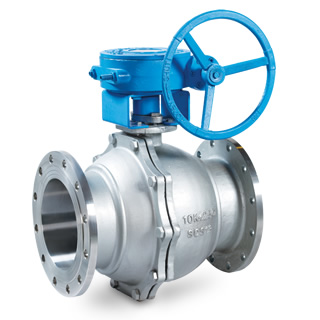

V-Port Ball Valves
KH 054 Series is the throttling control ball valve that provides the high valve capacity with optimum flow characteristic for wide industrial services such as Pulp and Paper, Refinery, Chemical, and Petrochemical Industries.
• 1-PC body design prevents leakage.
• V-Segment provides large straight pass
of fluid with solid particles.
• V-Segment with top and bottom
bearings offers low torque operation.
• Rotary-valve design provides cutting
particles or fibers in fluid between the
V-Ball and the seat enables the fluid to
pass smooth without obstruction.
• Spring supported metal seats.
• Interchangeable soft seats and metal seats
satisfy different applications. Seats can be
changed easily and directly by simple steps.
• Automatic pressure relief design.
• Nearly equal percentage flow characteristic.
• Integral mounting pad.
• External thrust bearing significantly reduces
valve operation torque
• Anti-static device.
- Body material: Standard in WCB/CF8/CF8M.
Special material is available acc. to
- Nominal size: 1" to 12" (DN25 to DN300)
- Pressure rating: JIS 10/20K ANSI 150/300LB
- End connections: RF, RTJ, BW
- Face to Face Dimension: ANSI B16.5
- Temperature Range: -20 Deg C to 250 Deg C
- Pressure Test Rating: ANSI B16.34 / API598
- Seat leakage: According to FCI 70-2 (B16.104)
- Fire Safe Test: API 607 4Th Edition / API 6FA
- Casting: MSS-SP-25 / MSS-SP-55
