‧Home > Produce >
|
|

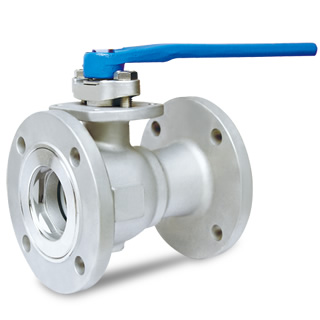

Flange Ball Valves
|
|
|
|
|
|
| KH022R |
| SIZE：1/2"~6" |
|
 |
| KH022R Series is the quarter turn design ball valve broadly used in Oil & Gas, Mining,
Petrochemical, Chemical Industries, Power Generation...etc. applications. |
|
 |
|
|
| |
 |
|
|
• ISO 5211 Direct Mounted Flange Ball Valve with high Cv
• Unobstructed Flow path
• Unexposed Seats and Ball
• Interchangeability of Parts
• Simple to Maintain
• Easy to Actuate
• Blow out proof stem
• “Sealmaster” Stem arrangement
• Double stem sealing to comply with TA-Luft requirement
• High Surface Finish
• Widest choice of soft seats in the industry - for use from -200 deg C to 280 deg C, ie., Cryogenic to High Temperature service.
• Heavy duty body & end cap construction with traceable heat unmber
• Tightness to EN 12266-1 |
|
|
|
|
 |
|
|
- Body Material: Standard in Carbon Steel and Stainless Steel (Special material is available according to requirements.)
- Nominal size: 1/2" to 6" (DN15 to DN150)
- Flange Dimensions: ANSI 150/300/600LB
- Seat: Virgin PTFE, Glass-PTFE, Carbon-PTFE, PEEK, PCTFE, etc.
- Temperature Range: -29 Deg C to 250 Deg C
- Face to Face Dimension: ANSI B16.10
- Flanged Dimension: ANSI B16.5
- Pressure Test Rating: ANSI B16.34
- Body Pressure Test Rating: ANSI B16.34
- Seat Leakage: ANSI B16.34
- Fire Safety Design: Conform to API 607 |
|
|
|
|
 |
 |
 |
