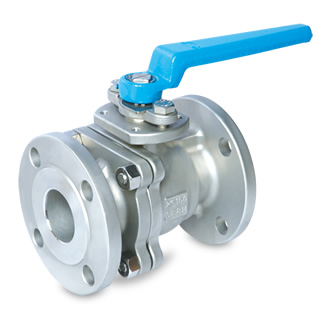

Flange Ball Valves
|
|
|
|
|
|
| KH024 |
| SIZE：1/2"~12" |
|
 |
| Oil & Gas, Mining, Petrochemical, Chemical Industries,
Power Generation...etc. applications. |
|
 |
|
|
| |
|
 |
|
|
• Unobstructed Flow path
• Wave ( Inconel 750 ) Spring design release torque with live-loaded function
• Stainless steel blow out proof stem
• Permits in-line access for seat replacement
• Solid stellited seats with large sealing faces
• Backup seals Graphite to 1,000°F (538°C)
• Wall thickness complies with ASME B16.34
• Stainless steel ball , hard chrome plated
• Ball and seat are mate lapped for zero leakage shutoff
• Loaded upstream seat for constant seat loads
• Press in downstream seat
• Nominal size: 1/2" to 12" (DN15 to DN300)
• Pressure Rating: ANSI 150/300/600LB |
|
|
|
|
 |
|
|
-Body Material: Standard in Carbon Steel and Stainless Steel (Special material is available according to requirements.)
- Face to Face Dimension: ANSI B16.10
- Flanged Dimension: ANSI B16.5
- Pressure Testing: API598 or API 6D
- Body Pressure Temp. Rating: ANSI B16.34
- Seat Leakage: ANSI B16.104 or API 598
- Fire Safety Design: Conform to API 607 |
|
|
|
|
 |
 |
 |
